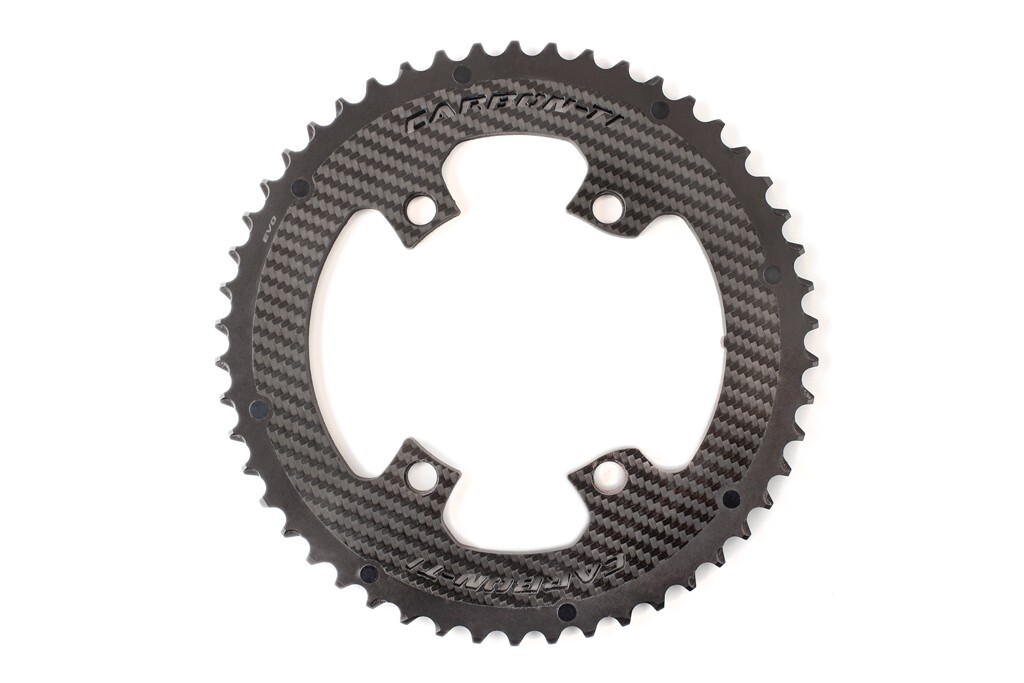

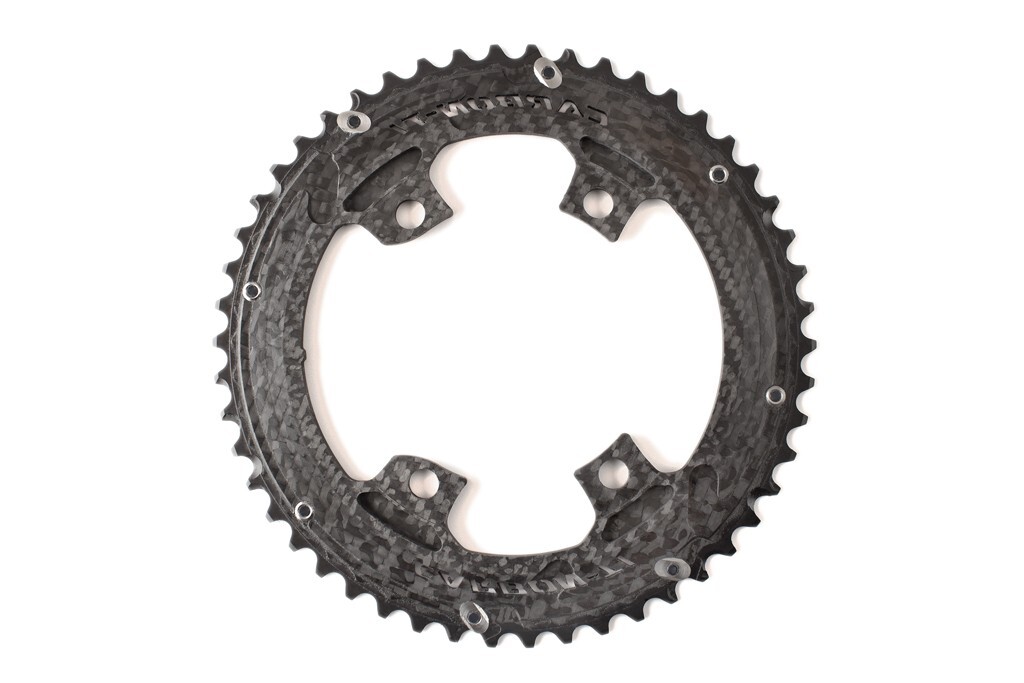

Chainring in AL7075-T6 aluminum alloy, 3K glossy structural carbon fiber with Titanium Grade 5 elements.
Outer gear with 50 teeth and BCD 110 mm 4 arms, compatible with Shimano Dura-Ace FC-9200, Ultegra FC-8100, SRM Origin, and Rotor Power Meter INSpider cranks. Compatible with Shimano Dura-Ace 9200, Ultegra 8100, Campagnolo 12-speed groupsets, and all previous 11-speed groupsets.
Not compatible with SRAM AXS 12 speed groups (choose the specific X-AXS chainrings).
It must be coupled with its inner X-CarboRing 34 x 110 (4 arms) chainring. It's recommended the use of X-Fix ROAD specific kit, made of AL7075-T6 alloy with customized laser engravings and available in a wide range of anodized colors.

WEIGHT: 97 g

X-CarboRing EVO is the latest evolution of super-light chainrings for racing bikes with a composite structure in aluminum alloy and carbon fiber proposed by Carbon-Ti.

X-Carboring EVO BCD 110 DA9200 (4 arms) are made for Shimano Dura Ace and Ultegra 12 speed cranks, as well as for the top-rated SRM Origin power meters. The wording "EVO" distinguishes this new generation of external chainrings which adopts the well known innovations that already belong to the latest "X-AXS" chainrings specific for SRAM AXS 12s groupsets.

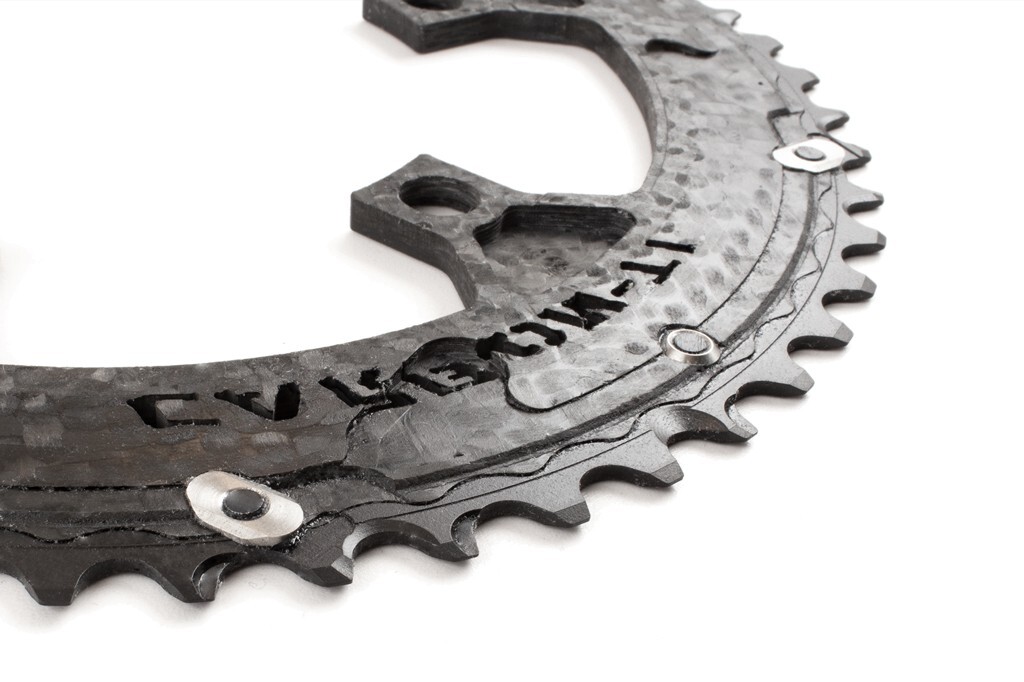

In detail, the outer chainrings are now produced with a thicker carbon fiber plate, to obtain a higher stiffness and to allow a more elaborate CNC machining. These ramps together with the redesigned titanium elements have the function of "harpooning" the chain, transferring it from the smallest to the largest chainring and allow fast and precise up-shifting and down-shifting with both electronic and mechanical derailleurs.

X-Carboring EVO chainrings are available in sizes 52/36 and 50/34 as well as in the unedited 54/40.Compatibility is ensured for Shimano 11 and 12 speed, Campagnolo 11 and 12 speed and SRAM 11 speed groupsets (and chains).

The X-Fix ROAD is the compatible fixing bolts kit. It is made of AL7075-T6 alloy with customized laser engravings, and it is available in a wide range of anodized colors.

The X-Fix ROAD is the compatible fixing bolts kit. It is made of AL7075-T6 alloy with customized laser engravings, and it is available in a wide range of anodized colors.

100% made in Italy.

SKU XCRE50I110DA9200
Brand Carbon-Ti
Product Category Chainrings
Carbon-Ti Components Chainrings
BCD 110
Arms 4 Arms
Ratio 50T
Type Carbon-Ti Chainrings
