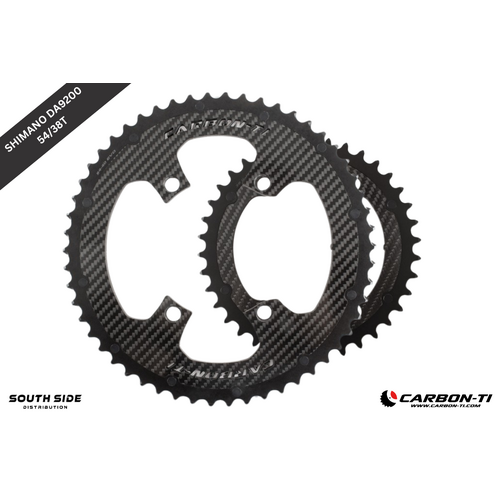

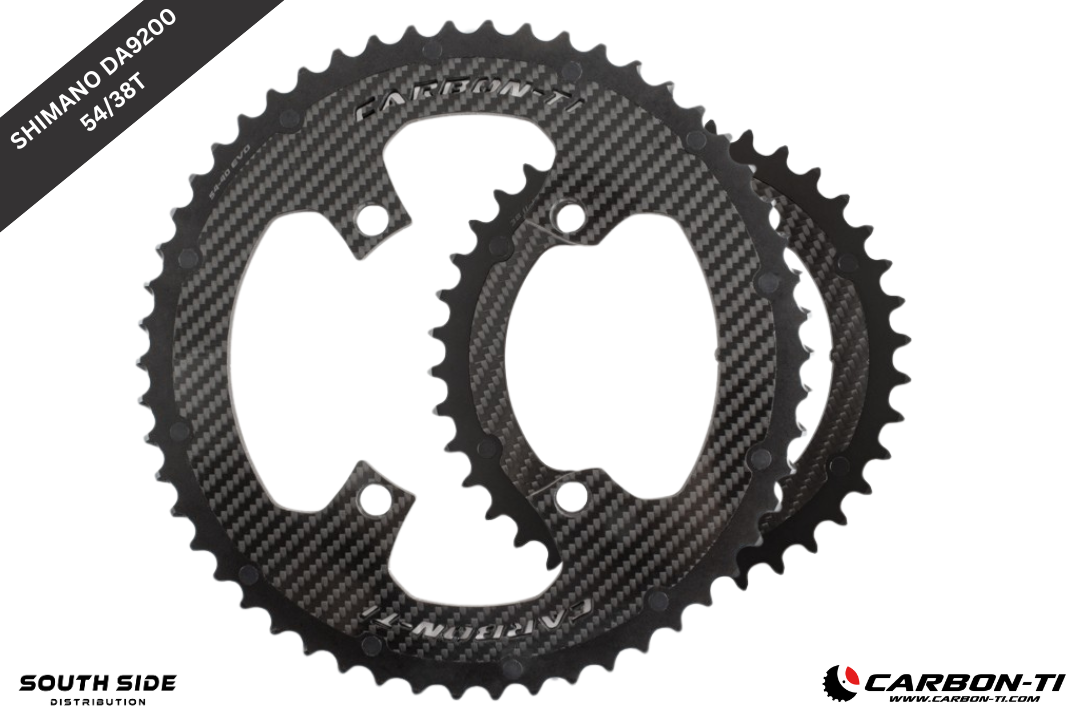

The Carbon-Ti X-CarboRing EVO 54/38T DA9200 is a premium race-oriented chainring combination engineered specifically for Shimano’s 12-speed road cranksets. Manufactured in Italy, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, low weight, and highly precise front shifting under load.

Designed around Shimano’s 110 BCD – 4-arm interface, this DA9200-specific configuration ensures optimal compatibility with Dura-Ace FC-9200 and Ultegra FC-8100 cranksets while maintaining accurate shift ramp timing and drivetrain efficiency.

A strong premium upgrade option for dealers building performance road race bikes requiring extended top-end gearing without compromising shift quality.

Key Features

Crank & Power Meter Compatibility

Compatible with 110 BCD – 4-arm cranksets including:

• Shimano Dura-Ace FC-9200

• Shimano Ultegra FC-8100

• Shimano Dura-Ace FC-R9200-P power meter

• SRM Origin (110 BCD – 4-arm)

• Rotor INSpider

The 54T outer ring can be paired with either the matching X-CarboRing EVO 38T or 40T inner ring, depending on the desired gearing range. Ensure correct pairing to maintain optimal shift ramp alignment and front shifting performance.
