Carbon-Ti X-CarboRing EVO 54/40 x 110 (4-arms) Chainrings
$774.99
Backorder Available

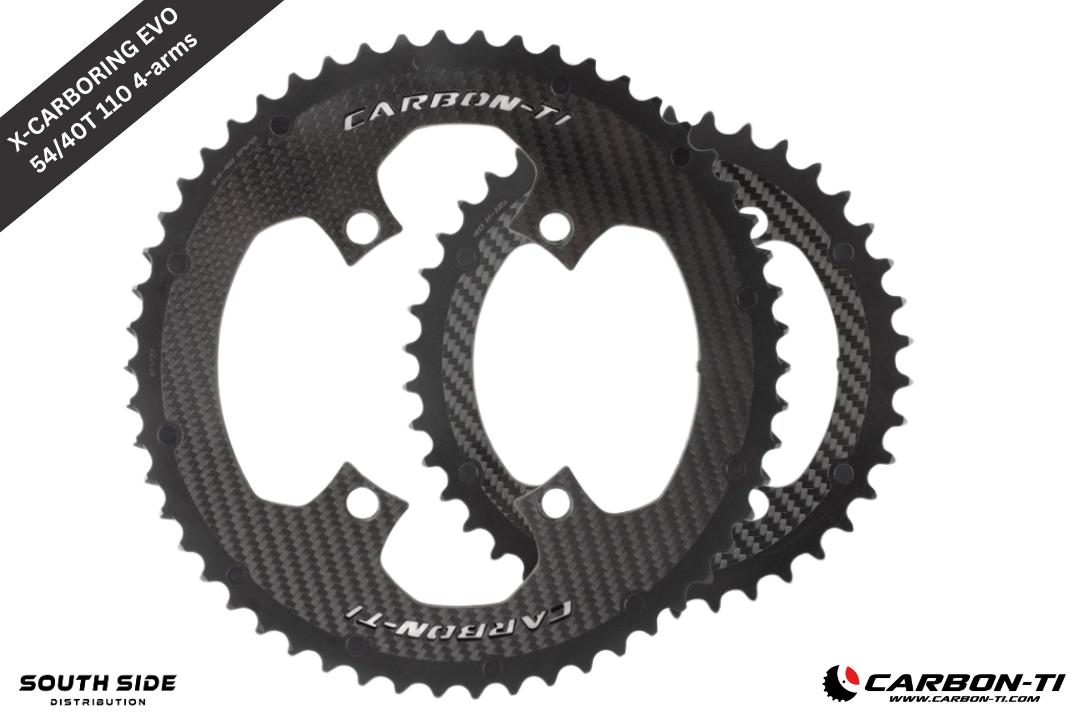

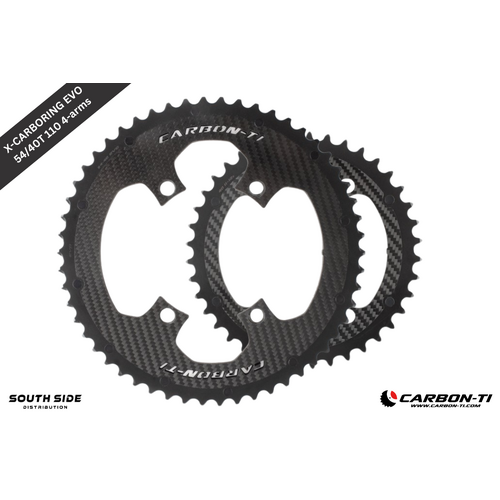

Carbon-Ti X-CarboRing EVO Chainring Set – 54/40T (110 BCD, 4-Arm)
The Carbon-Ti X-CarboRing EVO 54/40T is a premium large-format chainring combination engineered for high-speed road, criterium, and race-focused applications. Manufactured in Italy, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, low weight, and precise front shifting performance under load.
Designed for 110 BCD – 4-arm cranksets, the EVO platform provides excellent torsional rigidity and optimised shift ramp alignment, making it ideal for strong riders seeking greater top-end gearing without sacrificing front derailleur performance.
A high-end upgrade category for dealers building race bikes, fast road machines, and premium custom builds.
Key Features
-
Matched 54T outer / 40T inner combination
-
Structural carbon fibre body with glossy 3K finish
-
CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
-
Grade 5 titanium fixing elements
-
110 BCD – 4-arm interface
-
Optimised for Shimano 11–12 speed and SRAM 11 speed drivetrains
-
High torsional stiffness for improved power transfer
-
100% designed, developed, and manufactured in Italy
Specifications
-
Tooth Count: 54T outer / 40T inner
-
BCD: 110 mm
-
Mount: 4-arm
-
Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
-
Application: 2x Road / Race
Crank & Power Meter Compatibility
Compatible with 110 BCD – 4-arm cranksets including:
-
SRM Origin (all models)
-
Rotor INSpider
Groupset Compatibility
-
Shimano Road 11 speed
-
Shimano Road 12 speed
-
SRAM 11 speed road groups
-
Not compatible with SRAM AXS 12 speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
-
X-Fix ROAD specific kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
The 54T outer ring must be paired with the matching X-CarboRing EVO 40T inner ring to ensure correct shift ramp alignment and optimal front shifting performance.
| SKU | XCRE5440I110SH |
| Brand | Carbon-Ti |
| Product Category | Chainrings |
| Carbon-Ti Components | Chainrings |
| BCD | 110 |
| Arms | 4 Arms |
| Ratio | 54/40T |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.020m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.250000000m3 |
