Carbon-Ti X-CarboRing EVO 58/46 x 110 DA9200 (4-arms) Chainrings
$859.99
In Stock

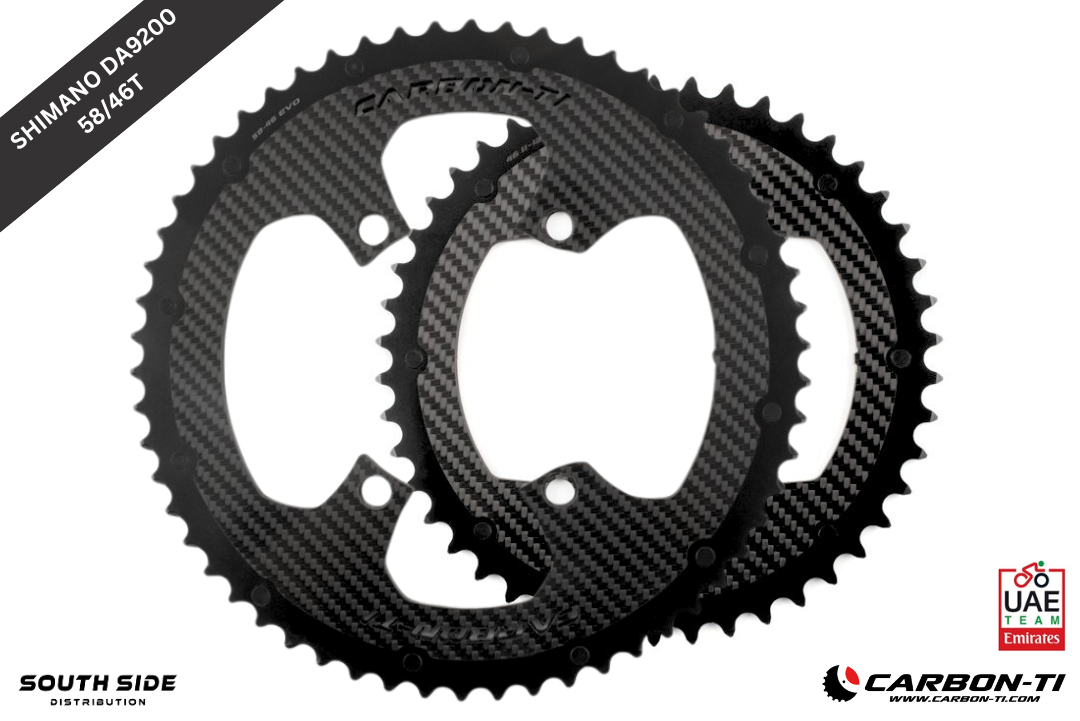

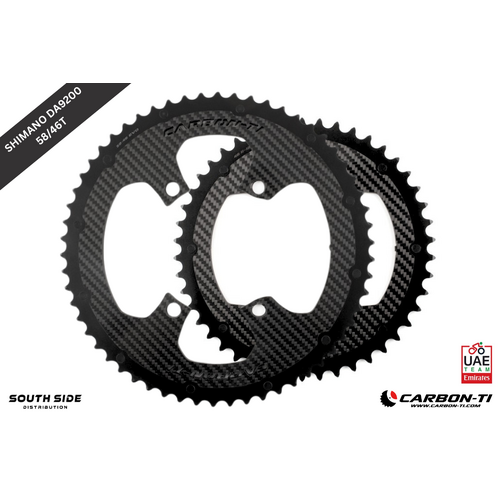

Carbon-Ti X-CarboRing EVO Chainring Set – 58/46T x 110 DA9200 (4-Arm)
The Carbon-Ti X-CarboRing EVO 58/46T DA9200 is a premium oversized chainring combination engineered for Shimano’s latest 12-speed road platforms and high-speed race applications. Designed for elite road, time trial, and triathlon builds, this matched outer and inner ring set combines structural carbon fibre with CNC-machined AL7075-T6 alloy teeth and Grade 5 titanium elements to deliver exceptional stiffness, reduced weight, and precise front shifting under load.
Built around Shimano’s 110 BCD – 4-arm interface, this DA9200-specific configuration ensures seamless compatibility with current-generation Shimano cranksets while maintaining accurate shift ramp alignment and drivetrain efficiency at high power outputs.
A strong premium upgrade category for dealers building TT bikes, aero race machines, and power meter-equipped performance builds.
Key Features
-
Matched 58T outer / 46T inner combination
-
DA9200-specific configuration for Shimano 12-speed cranksets
-
Structural carbon fibre body with glossy 3K finish
-
CNC-machined AL7075-T6 alloy teeth for durability and precise shifting
-
Grade 5 titanium fixing elements
-
110 BCD – 4-arm Shimano interface
-
Optimised for Shimano 12-speed and Shimano 11-speed road drivetrains
-
High torsional stiffness for efficient power transfer
-
100% designed, developed, and manufactured in Italy
Specifications
-
Tooth Count: 58T outer / 46T inner
-
BCD: 110 mm
-
Mount: 4-arm (Shimano DA9200 interface)
-
Construction: Carbon fibre / AL7075-T6 alloy / Titanium Grade 5
-
Application: 2x Road / TT / Triathlon
Crank & Power Meter Compatibility
Compatible with 110 BCD – 4-arm cranksets including:
-
Shimano Dura-Ace FC-9200
-
Shimano Ultegra FC-8100
-
Shimano Dura-Ace FC-R9200-P power meter
-
SRM Origin (110 BCD – 4-arm)
-
Rotor INSpider
Groupset Compatibility
-
Shimano Dura-Ace R9200 (12-speed)
-
Shimano Ultegra R8100 (12-speed)
-
All previous Shimano 11-speed road groups
-
Not compatible with SRAM AXS 12-speed groups (use X-AXS chainrings instead)
Recommended Bolt Kit
-
X-Cover DA9200 kit – specific AL7075-T6 alloy kit for Shimano Dura-Ace R9200 cranksets
-
X-Fix ROAD kit – AL7075-T6 alloy, laser-engraved and available in multiple anodised colours
Workshop Note
The 58T outer ring must be paired with the matching X-CarboRing EVO 46T inner ring to ensure correct shift ramp alignment and optimal front shifting performance.
| SKU | XCRE5846I110DA9200 |
| Brand | Carbon-Ti |
| Product Category | Chainrings |
| Carbon-Ti Components | Chainrings |
| BCD | 110 |
| Arms | 4 Arms |
| Ratio | 58/46T |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.020m |
| Shipping Height | 0.250m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.250000000m3 |
