The threaded solution developed by Nova Ride regarding Press Fit bottom brackets allows to perfectly align the two cups, which remove cracks and enhance the durability and the fluidity of bearings. This threaded solution facilitates the bottom bracket mounting and maintenance, and mainly allows to increase the bottom bracket rigidity by fixing the two cups together.

Made with high-end materials: two 7075 aluminum cups CNC machined anodized allows better rigidity and coupled with ceramic ball bearings which reduces crankset frictions and improves your drivetrain transmission.

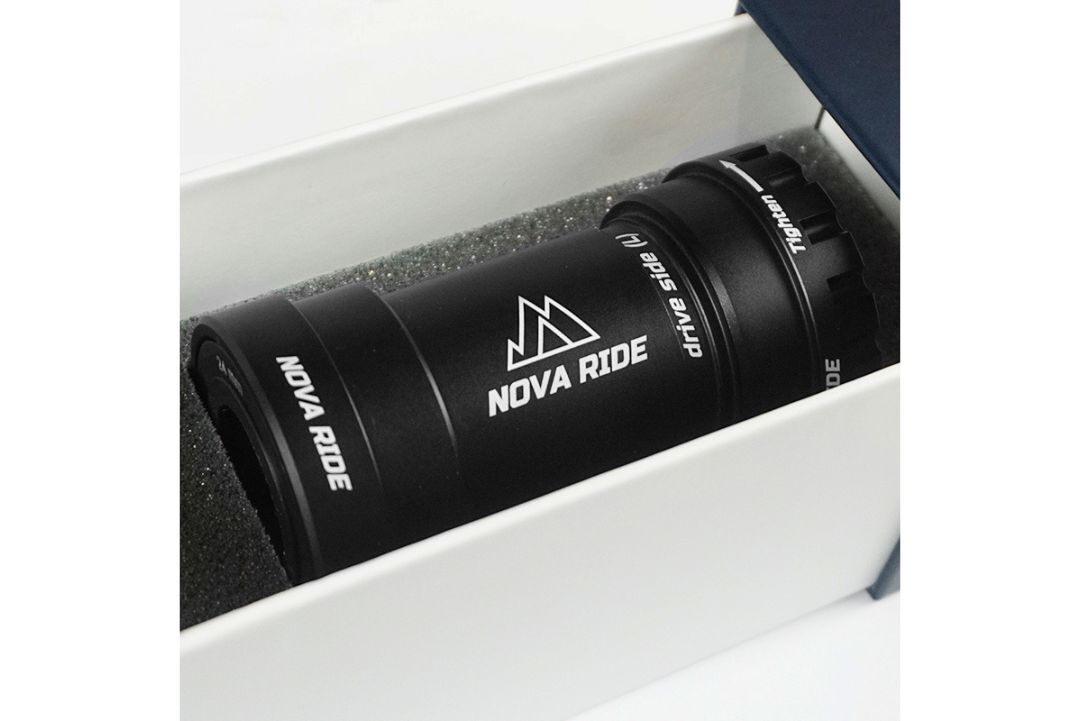

Included in the box :
- Bottom bracket.
- Special Nova Ride tool to tighten your bottom bracket during installation.

Compatibility :
PF30 (Pressfit30)

Characteristics :
Shell width : 68 / 73mm

Internal shell diameter : 46mm
Crankset Diameter :
24mm : Shimano crankset type.

Weight :
24mm : 188 g



Product Warranty

  • CNC alloy parts come with a lifetime warranty.
  • Bearings are covered by a 4-year warranty.
SKU PNR2022B2-24
Brand Nova Ride
Product Category Bottom Bracket
Nova Ride Models Bottom Brackets - Shimano
Shipping Weight 0.2500kg
Shipping Width 0.080m
Shipping Height 0.150m
Shipping Length 0.080m
Shipping Cubic 0.240000000m3
Type Nova Ride Bottom Brackets
