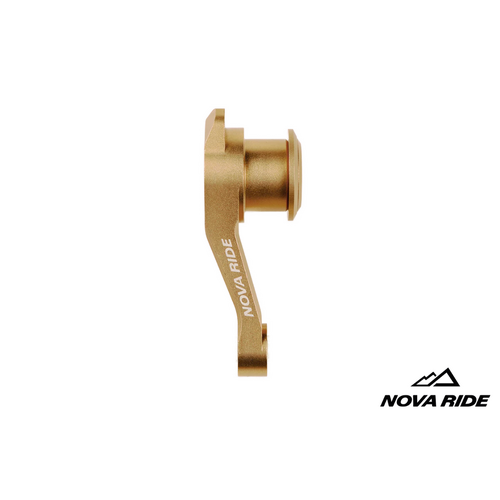

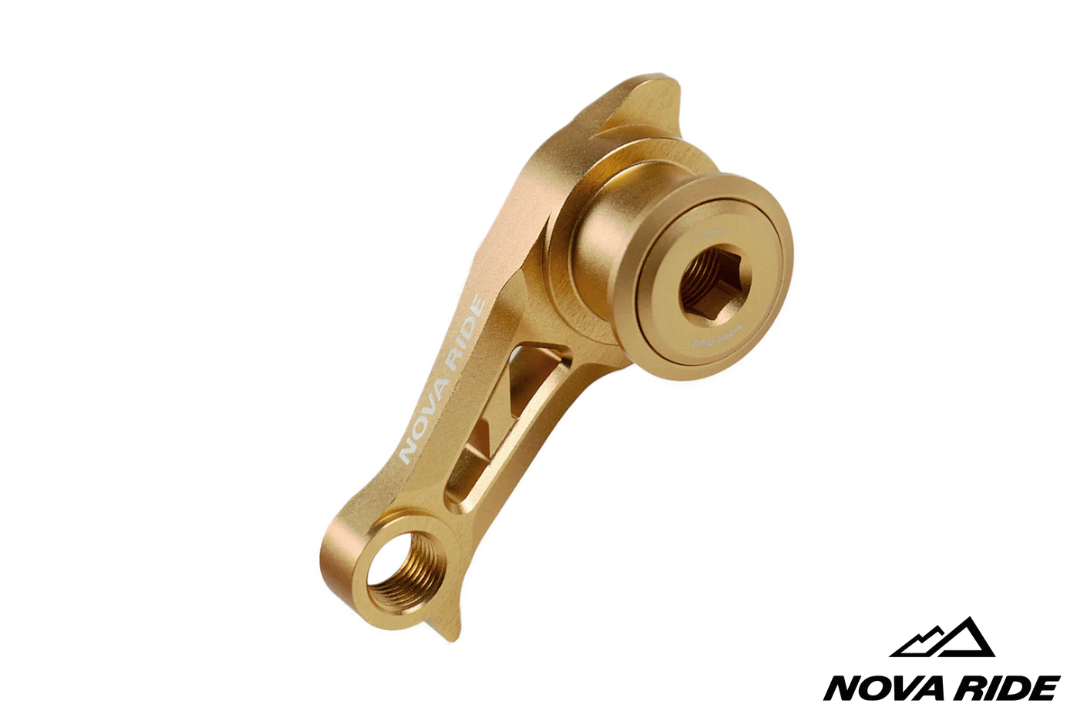

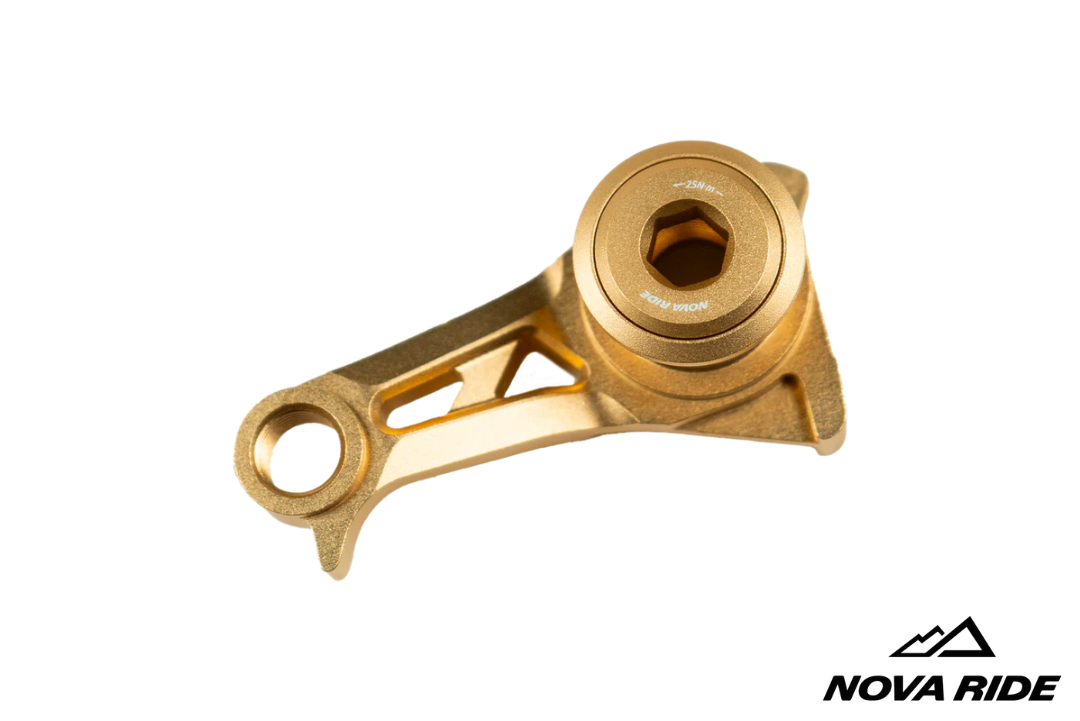

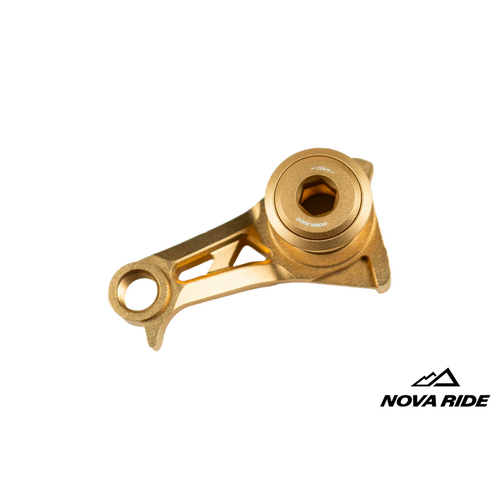

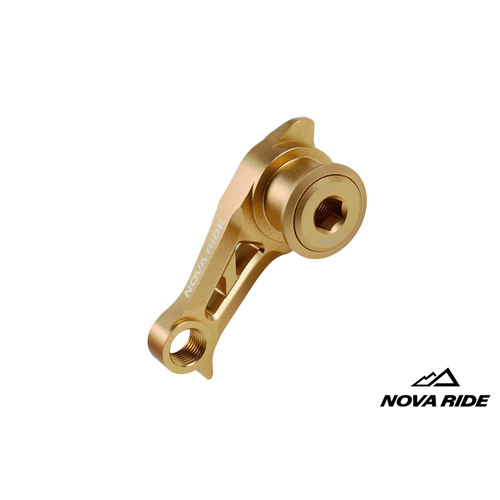

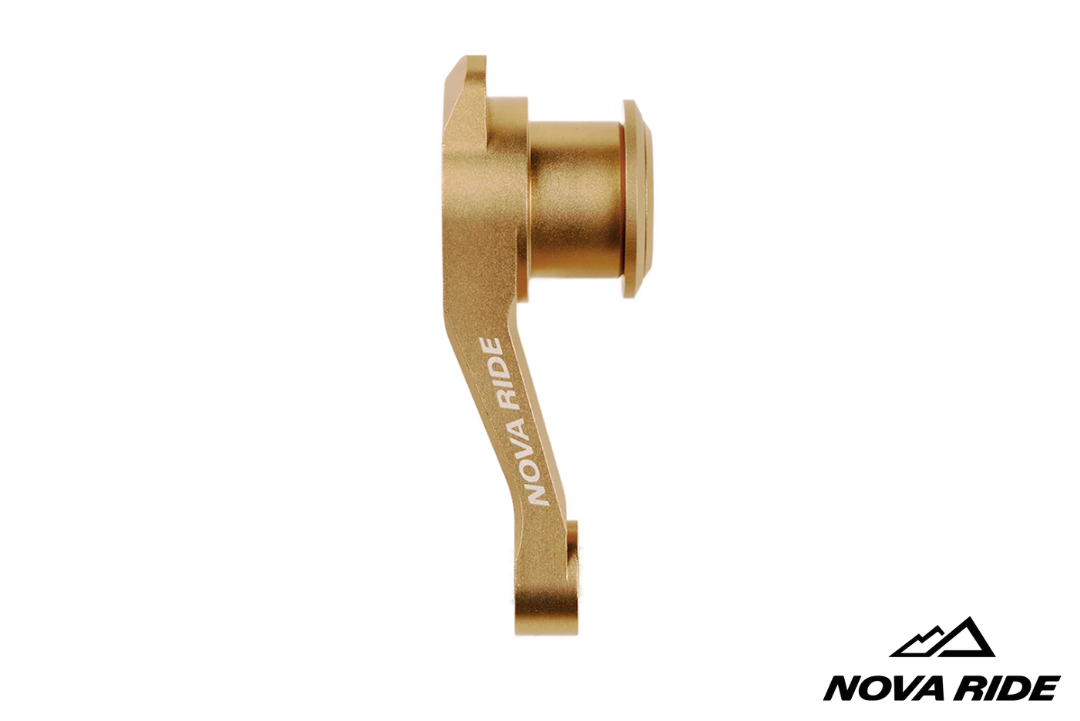

Nova Ride UDH Direct Mount Derailleur Hanger – Shimano Compatible

The Nova Ride UDH Direct Mount Derailleur Hanger is engineered to provide precise derailleur alignment, improved drivetrain rigidity, and simplified rear wheel installation for frames using the UDH (Universal Derailleur Hanger) standard.

Designed as a Direct Mount system, it removes unnecessary mechanical interfaces found in traditional hanger designs, improving drivetrain precision while maintaining controlled flexibility to absorb impacts and protect the derailleur.

CNC-machined entirely from 7075 aluminium, the hanger delivers consistent derailleur positioning for smooth and accurate shifting. The material’s high strength and stability also ensure threads remain secure under vibration, reducing the risk of loosening over time.

An integrated chain guard helps prevent the chain from dropping between the cassette and frame, while the hanger’s geometry provides additional clearance to simplify rear wheel removal and installation.

Finished with Nova Ride’s distinctive design language, it integrates seamlessly with other Nova Ride drivetrain components and performance upgrades.

Key Features

• Direct Mount derailleur hanger for UDH-equipped frames

• Eliminates unnecessary interfaces for improved drivetrain rigidity

• Precision CNC-machined 7075 aluminium construction

• Optimised derailleur alignment for consistent shifting performance

• Integrated chain guard to prevent chain drops behind the cassette

• Increased clearance to simplify rear wheel installation and removal

• Designed to absorb impact energy to help protect the derailleur

• Clean Nova Ride aesthetic to complement other drivetrain components

Specifications

Frame Interface

• Compatible with frames using the UDH (Universal Derailleur Hanger) standard

Rear Wheel Interface

• Thru axle with M12 × 1.00 mm threading

Material

• CNC-machined 7075 aluminium

Weight

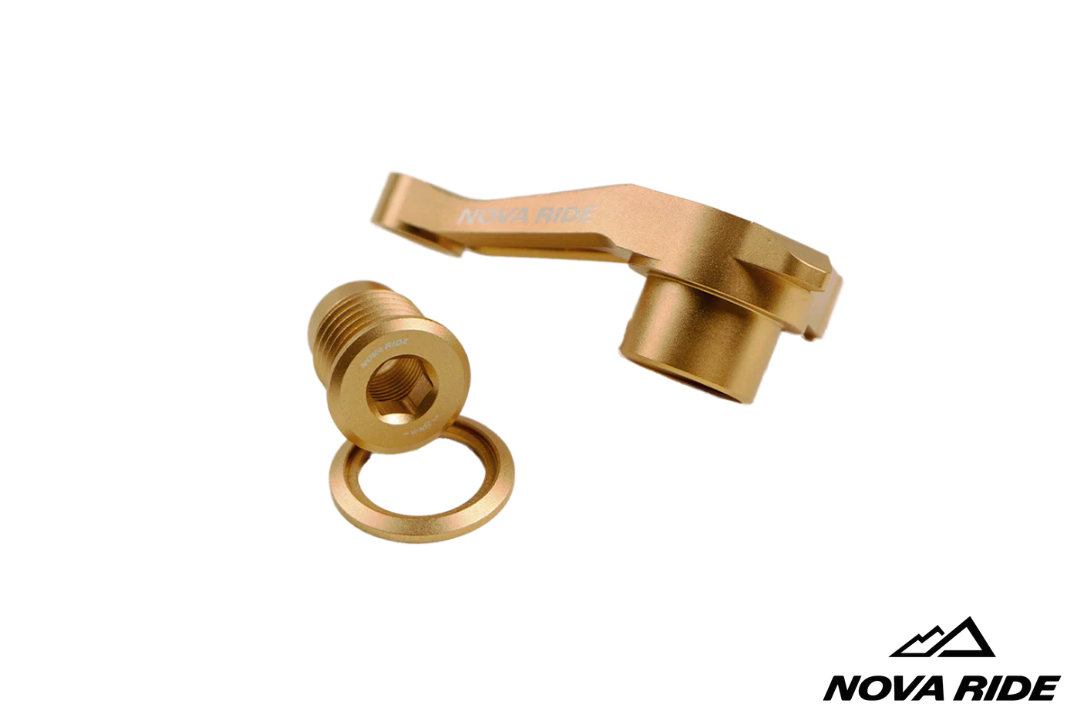

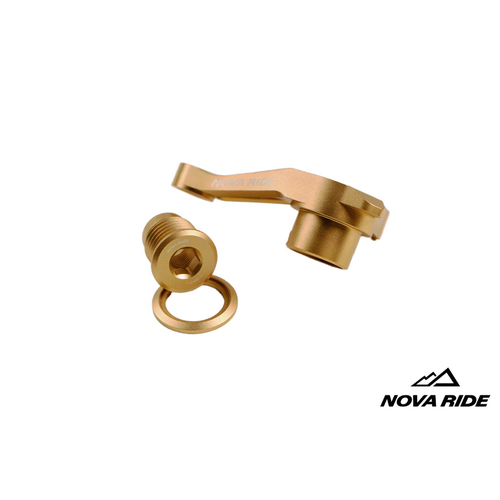

• 33 g (hanger body, spacer and screw)

Compatibility

Compatible with Shimano derailleurs including:

11-Speed

• Shimano 105 R7000

• Shimano Ultegra R8000 / R8050

• Shimano Dura-Ace R9100 / R9150

• Shimano GRX RX810 / RX812 / RX815 / RX817

12-Speed

• Shimano 105 R7100 / R7150

• Shimano Ultegra R8150

• Shimano Dura-Ace R9250

• Shimano GRX RX820

Warranty

• 4-Year Manufacturer Warranty
