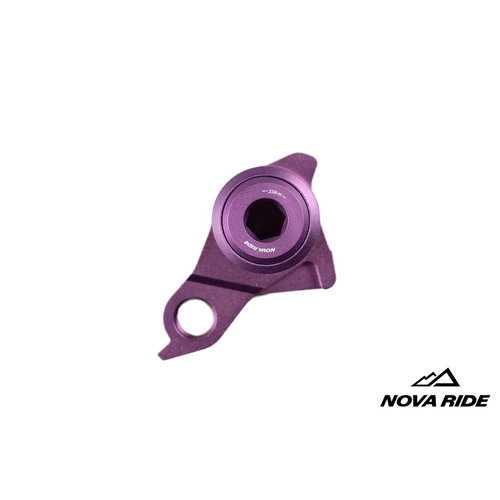

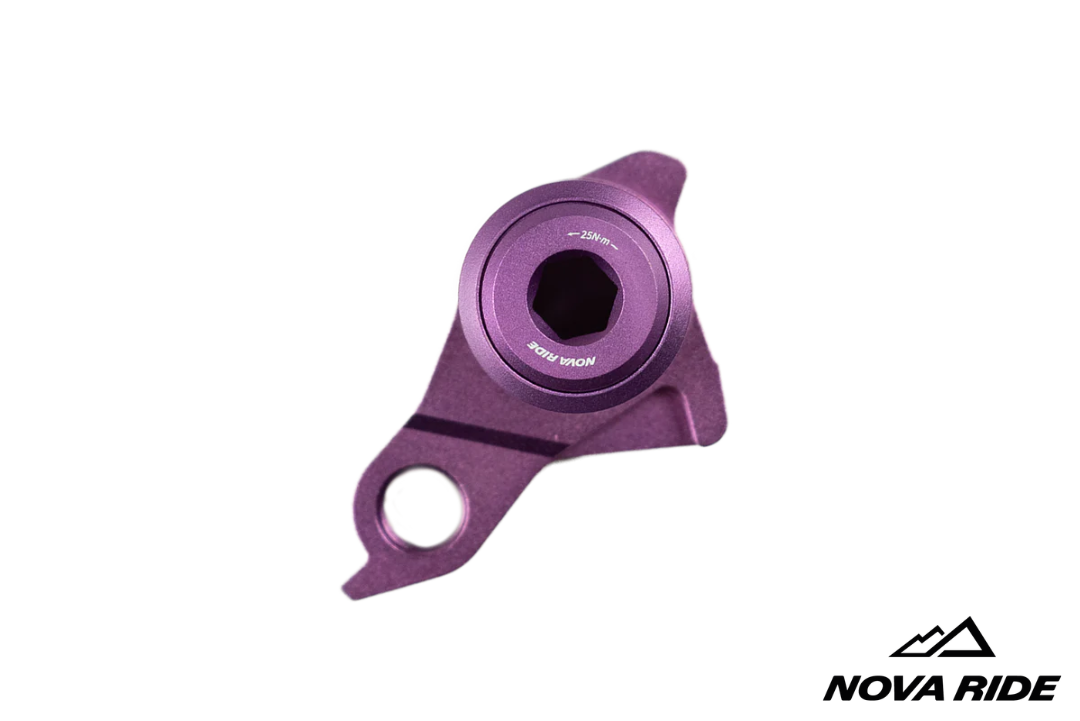

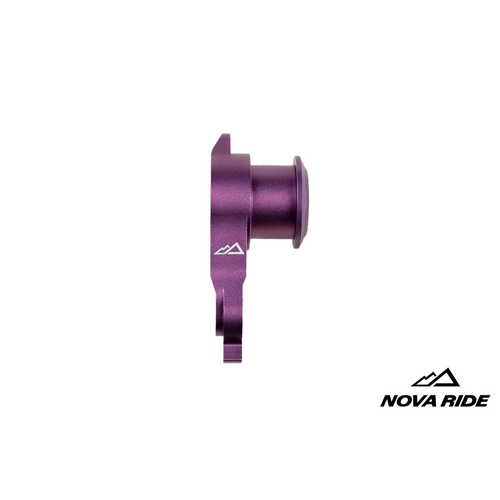

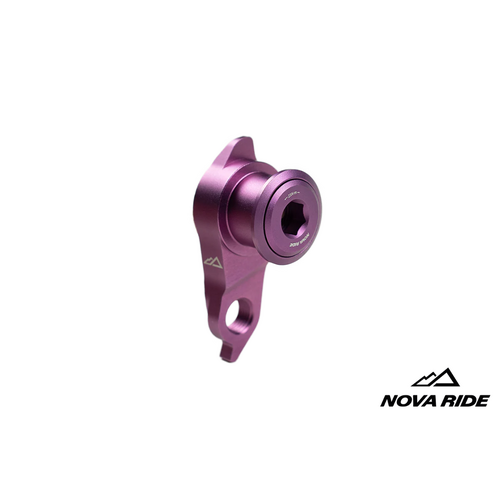

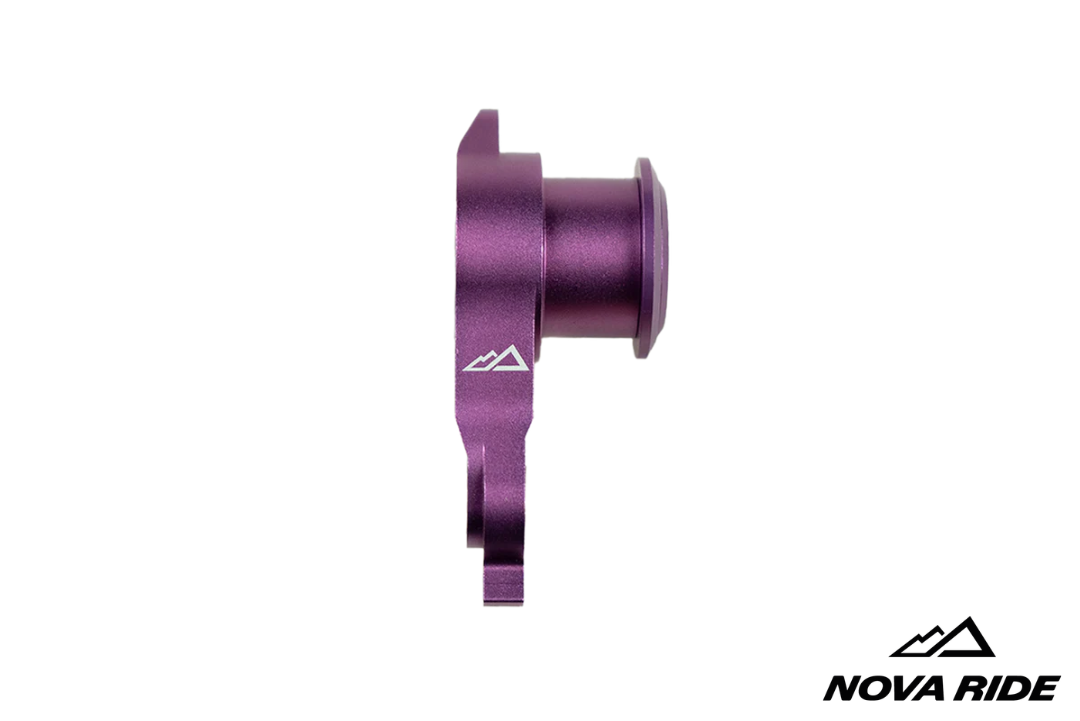

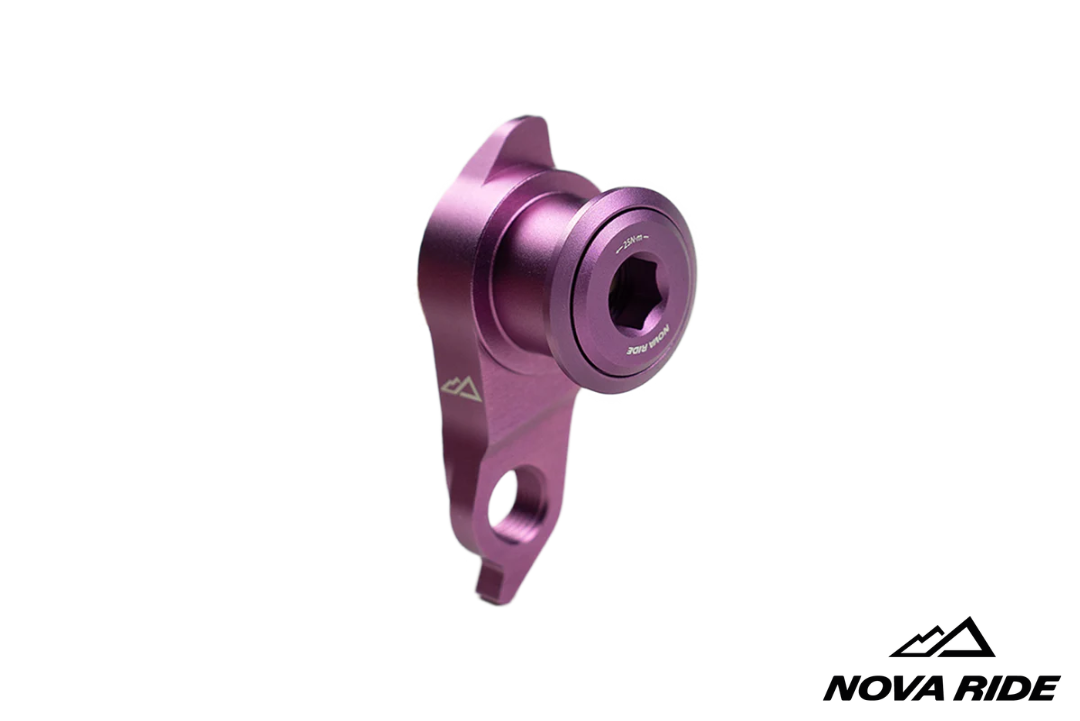

Nova Ride NRC UDH Derailleur Hanger – SRAM Compatible

The Nova Ride NRC UDH Derailleur Hanger is engineered to provide precise derailleur alignment and consistent shifting performance for frames using the UDH (Universal Derailleur Hanger) standard.

CNC-machined from 7075 aluminium, the hanger delivers excellent drivetrain rigidity while maintaining controlled flexibility to absorb impact forces and help protect the derailleur in the event of a crash or strike.

Designed for SRAM AXS and Eagle drivetrains, and compatible with select Shimano gravel and MTB systems, the hanger ensures accurate derailleur positioning for smooth indexing and reliable shifting under load.

An integrated chain guard helps prevent the chain from dropping between the cassette and frame, while the refined hanger profile maintains adequate clearance to simplify rear wheel installation and removal.

Finished with Nova Ride’s signature design aesthetic, it provides a clean and cohesive upgrade for performance-focused builds.

Key Features

  • Replacement derailleur hanger for UDH-equipped frames

  • Precision CNC-machined 7075 aluminium construction

  • Optimised derailleur alignment for consistent shifting performance

  • Designed to absorb impact energy to help protect the derailleur

  • Integrated chain guard to prevent chain drops behind the cassette

  • Clean Nova Ride aesthetic to complement modern drivetrain builds

Specifications

Frame Interface

  • Compatible with frames using the UDH (Universal Derailleur Hanger) standard

Rear Wheel Interface

  • Thru axle with M12 × 1.00 mm threading

Material

  • CNC-machined 7075 aluminium

Weight

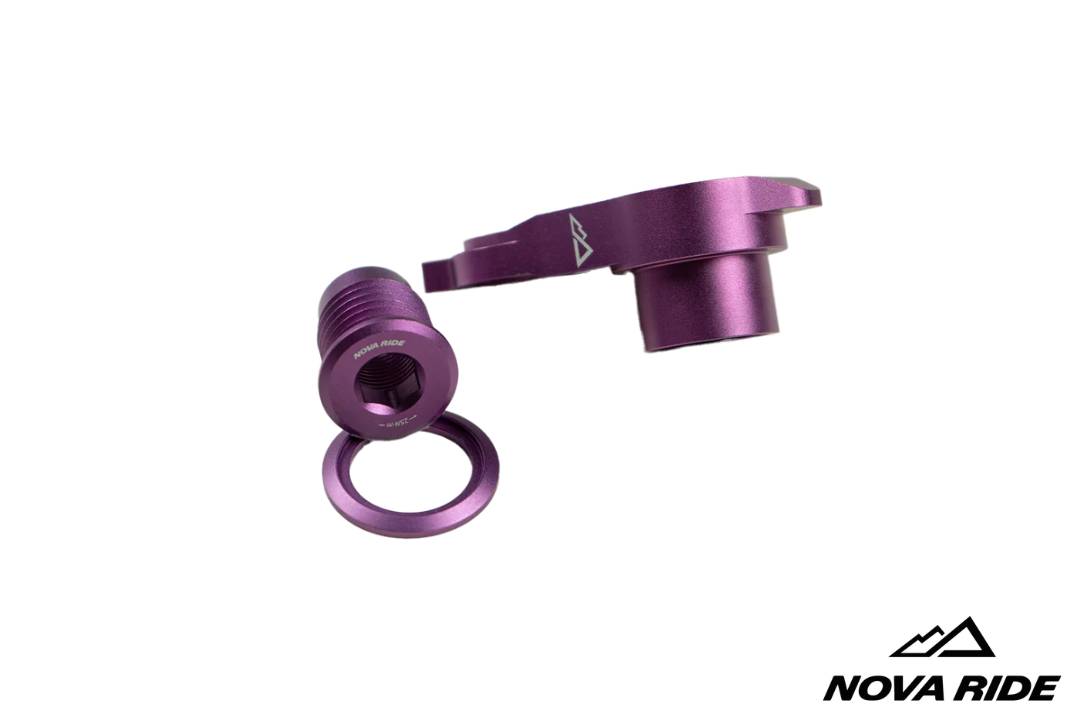

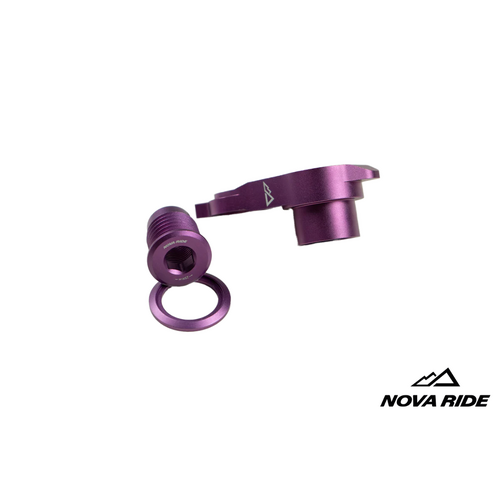

  • 28 g (hanger body, spacer and screw)

Compatibility


SRAM

  • SRAM Rival AXS (D1 / E1) – 12 speed

  • SRAM Force AXS (D1 / D2 / E1) – 12 speed

  • SRAM RED AXS (D1 / E1) – 12 speed

  • SRAM Rival XPLR AXS – 12 speed

  • SRAM Force XPLR AXS – 12 speed

  • SRAM RED XPLR AXS – 12 speed

  • SRAM GX Eagle – 12 speed

  • SRAM X01 Eagle – 12 speed

  • SRAM XX1 Eagle – 12 speed

Shimano

  • Shimano GRX RX822 / RX827 – 12 speed

  • Shimano Deore M6250 – 12 speed

  • Shimano Deore XT M8250 – 12 speed

  • Shimano XTR M9250 – 12 speed

Warranty

  • 4-Year Manufacturer Warranty

SKU NRC_UDH_SRAM_P
Brand Nova Ride
Product Category Nova Ride UDH Derailleur Hangers
Nova Ride Models Nova Ride UDH Derailleur Hangers
Shipping Weight 0.1000kg
Shipping Width 0.030m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.290000000m3
