TIME ADHX Gloss Amber All Road Frameset
ADHX
TIME’s debut gravel bike has quickly notched several victories – our ADHX (Alpe d’Huez X) is the first of its kind to incorporate Bio-Based Dyneema®, the World’s Strongest Fiber®, to build a better performing machine. It’s the first to utilize braided carbon structure (BCS) manufacturing, a TIME exclusive that outperforms traditional carbon prepreg construction in almost every way by incorporating several types of fiber into each multidirectional braid. The ADHX is first in quality and tolerance control thanks to our highly accurate resin transfer moulding (RTM) process and is manufactured entirely in the EU using one of the most sustainable manufacturing processes in the industry. TIME’s first performance gravel offering is more than a cursory nod – in many ways the arrival of the ADHX makes it the clear leader in a very crowded field – with pedigree to spare, an iconic look and an attitude eager to make a splash.
Is It Your Time?
ADHX is perfect for riders who want a top-performing “fast gravel” machine. Weight, stiffness, comfort and handling are cornerstones – as important as the knowledge that ADHX is technologically unique. Racers, All Road explorers and everyday riders seeking an experience off the tarmac will find ADHX checks the boxes.
At a Glance
• High Performance Gravel/Allroad
• BCS, RTM and Dyneema® technologies
• DEDA S DCR Headset for Semi and Fully-Integrated Systems
• Top Tube Mounting Point
• Forged Carbon Dropouts
• 38-40C Tire Clearance
• Five Sizes

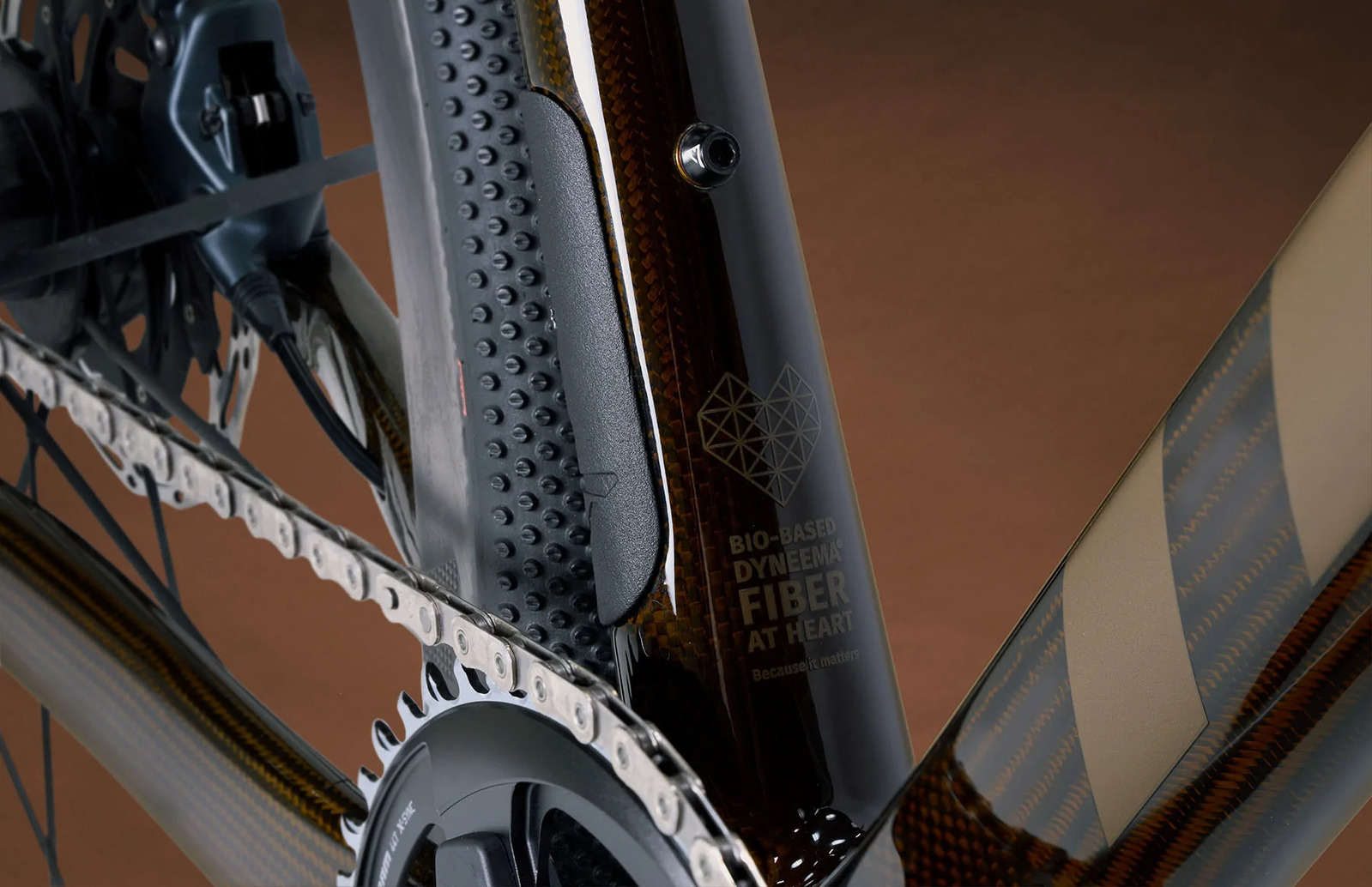

Bio-Based DYNEEMA® Fiber is Lighter, Stronger and Smarter
Dyneema® fiber is 15x stronger than steel at the same weight and is so light that it floats on water. The promise of integrating Dyneema® in carbon structures has been making headlines for years now, but to date very few manufacturers have been able to incorporate the material. TIME is different–we aren't reliant on materials availability from large carbon prepreg manufacturers. By weaving our own braided carbon structures (BCS) we have been able to test strands of sustainable Bio-Based Dyneema® fibres since they first became available from DSM. And unlike the high temperature ovens used to cure standard prepreg frames, the lower resin temperature of the RTM injection process is well within the safe temperature range for Dyneema®

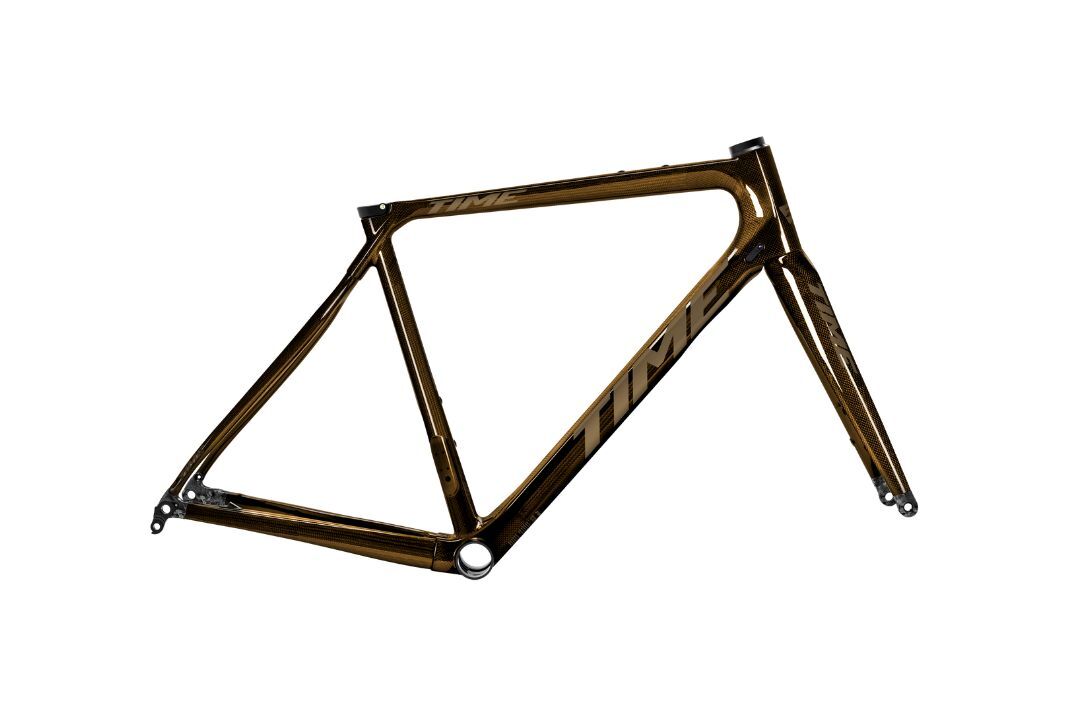

Frame Specifications
|
Frame |
HS/HM Carbon & Dyneema® BCS, Forged Carbon Dropouts |
|
Fork |
HS/HM Carbon & Kevlar® BCS, Forged Carbon Dropouts |
|

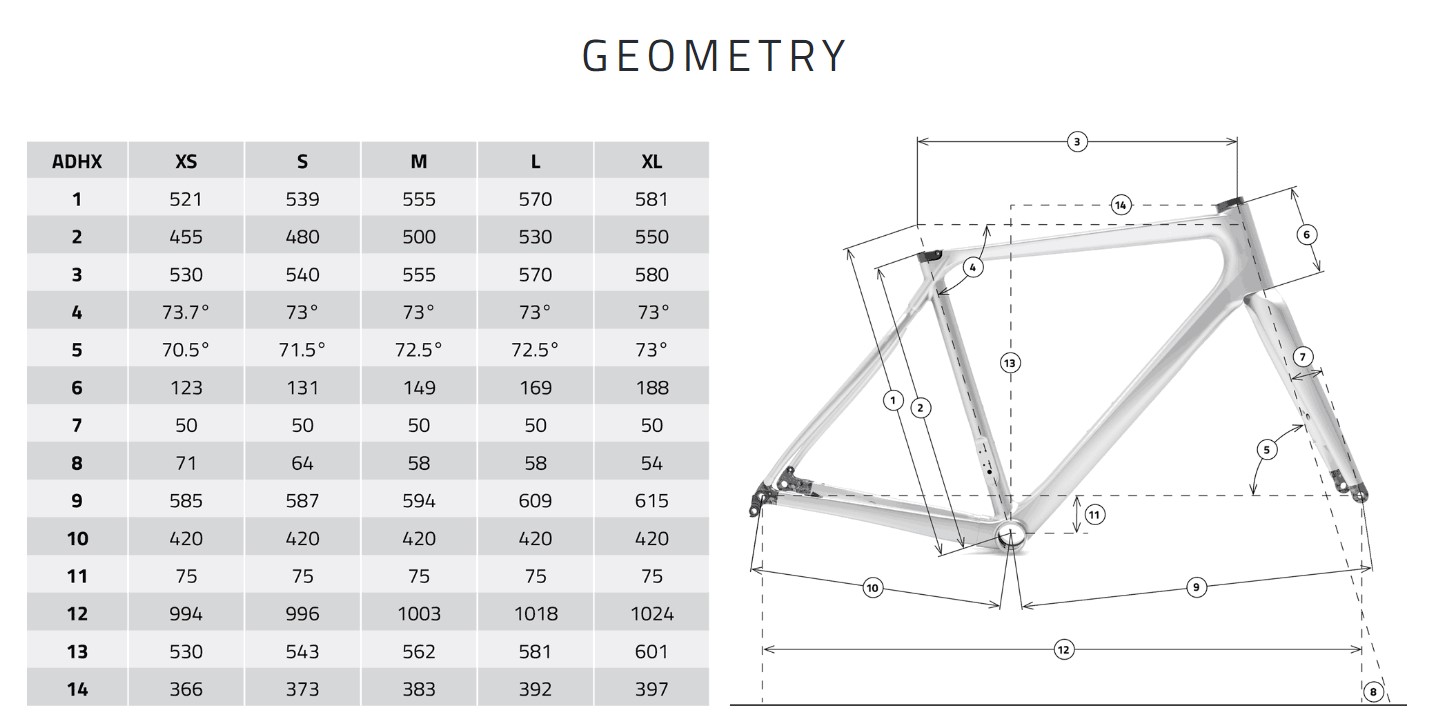

Geometry |
TIME Allroad Geometry |
|
Sizes |
XS/SM/MD/LG/XL |
|
Headset |
DEDA S DCR (Semi & Fully-Integrated) |
|
Seat Post |
ø27.2MM |
|
Brake Type |
Flat Mount Disc |
|
Drivetrain Type |
Mechanical or Electronic |
|
Bottom Bracket |
BB386 |
| SKU | TIMEADHXV18AMBER |
| Brand | TIME Bicycles |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.640m |
| Shipping Length | 1.050m |
| Shipping Cubic | 31.920000000m3 |
| Type | Time Bicycle Framesets |
