Complete spares list for your TIME Alpe D'Heuz 01 Frameset.

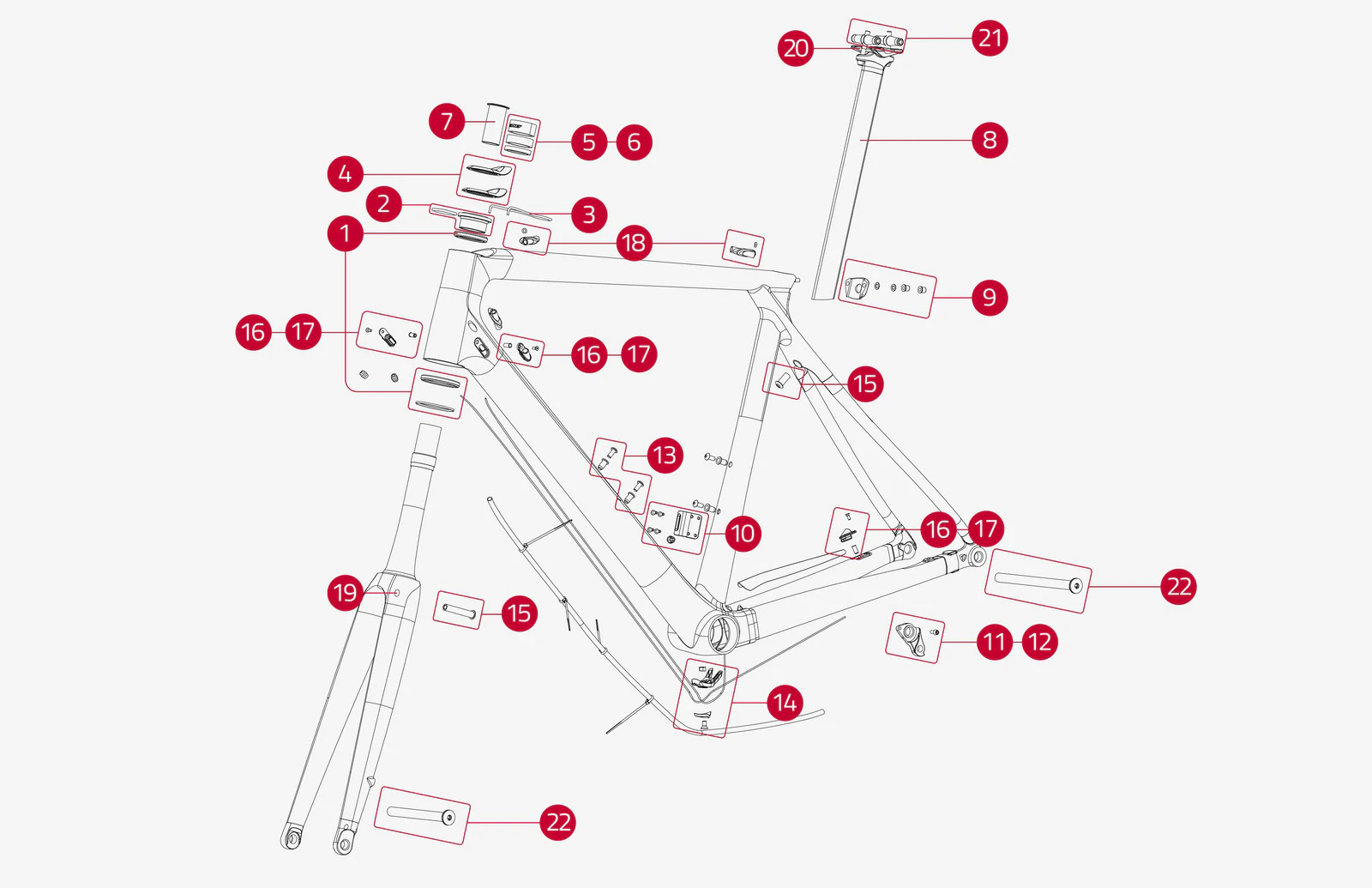

The master diagram shows the small part kits we supply. Please reference the chart below if you need additional information.

Diagram Part Number Name Items Per Kit

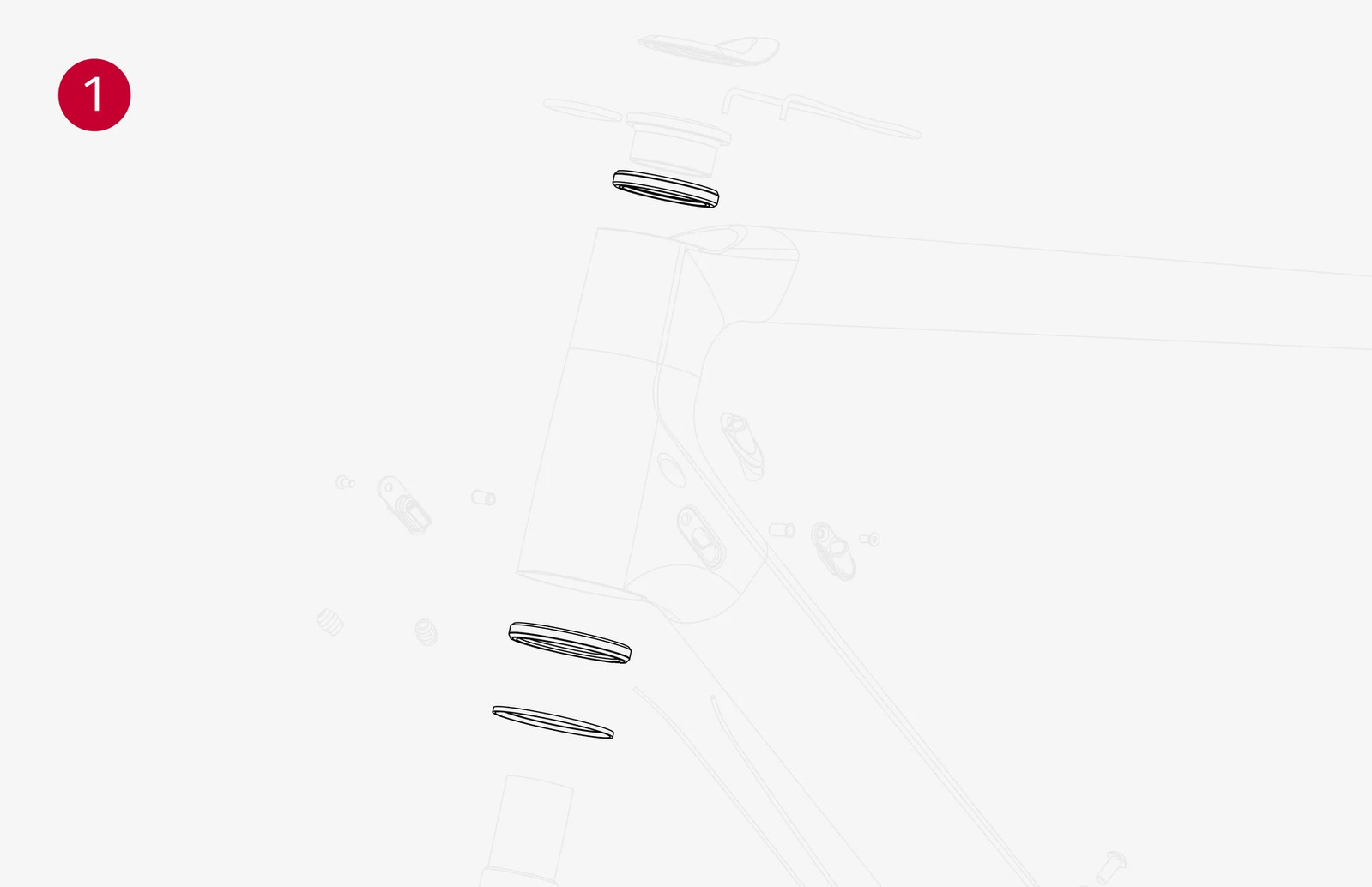

1 90002001 Headset Bearings 3 PCS
2 90002002 Quickset 2 PCS
3 90002003 Quickset Adjustment Tool 1 PCS
4 90002004 Stem Covers 2 PCS
5 90002005 Gloss Shims 5/10/15mm 3 PCS

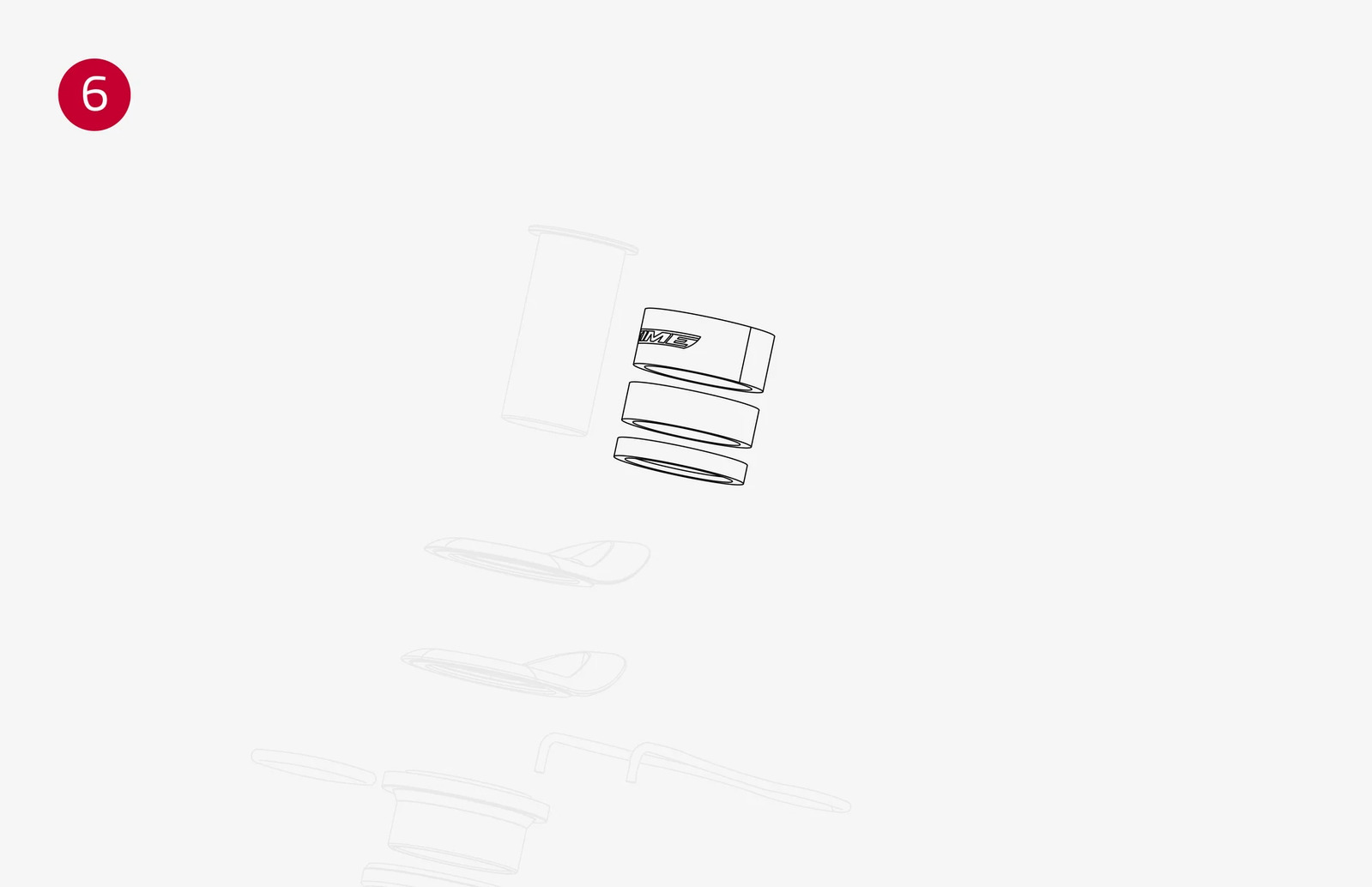

6 90002006 Matte Shims 5/10/15mm 3 PCS
7 90002007 Quickset Top Cap 1 PCS
8 90002008 Seat Post 1 PCS
9 90002009 Seat Post Clamp 5 PCS
10 90002010 Front Derailleur Hanger 5 PCS
11 90002011 Rear Derailleur Hanger Disc 2 PCS
12 90002012 Rear Derailleur Hanger Rim 2 PCS
13 90002013 H2O Bolt and Nut 4 PCS
14 90002014 Bottom Bracket Cable Guide 4 PCS
15 90002015 Brake Nuts 2 PCS
16 90002016 Electric Plug 7 PCS
17 90002017 Mechanic Plug 9 PCS
18 90002018 Brake Cable Guide 4 PCS
19 90002019 Fork Brake Plug 1 PCS
20 90002020 Cradle Seat Post 1 PCS
21 90002021 Top Rail Barrels and Bolts 4 PCS
22 90002022 TIME Thru Axles F/R 2 PCS
SKU TIMEADH01SmallParts
Brand TIME Bicycles
