Complete spares list for your TIME Alpe D'Heuz 21 Frameset.

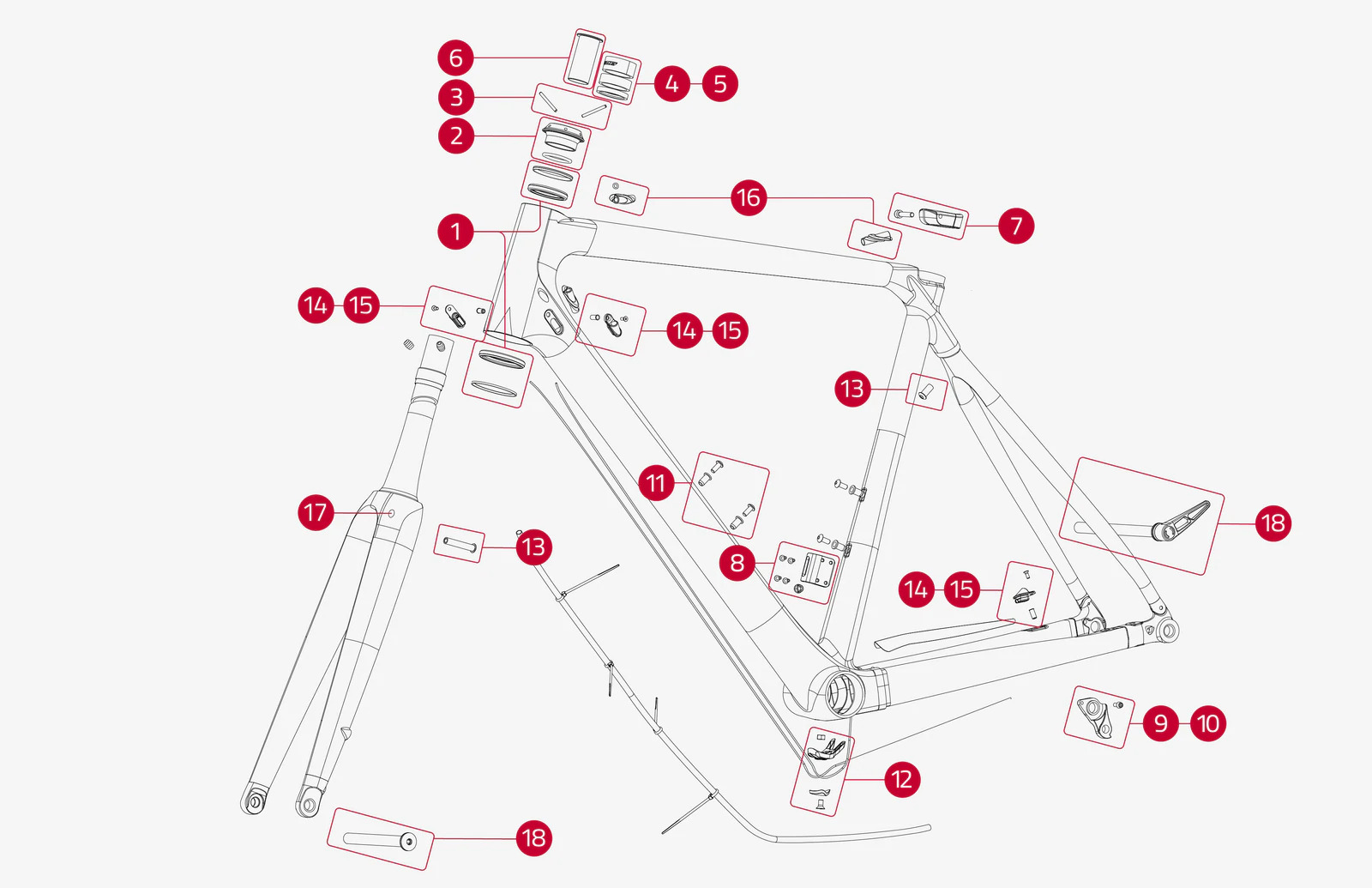

The master diagram shows the small part kits we supply. Please reference the chart below if you need additional information.

Diagram Part Number Name Items Per Kit

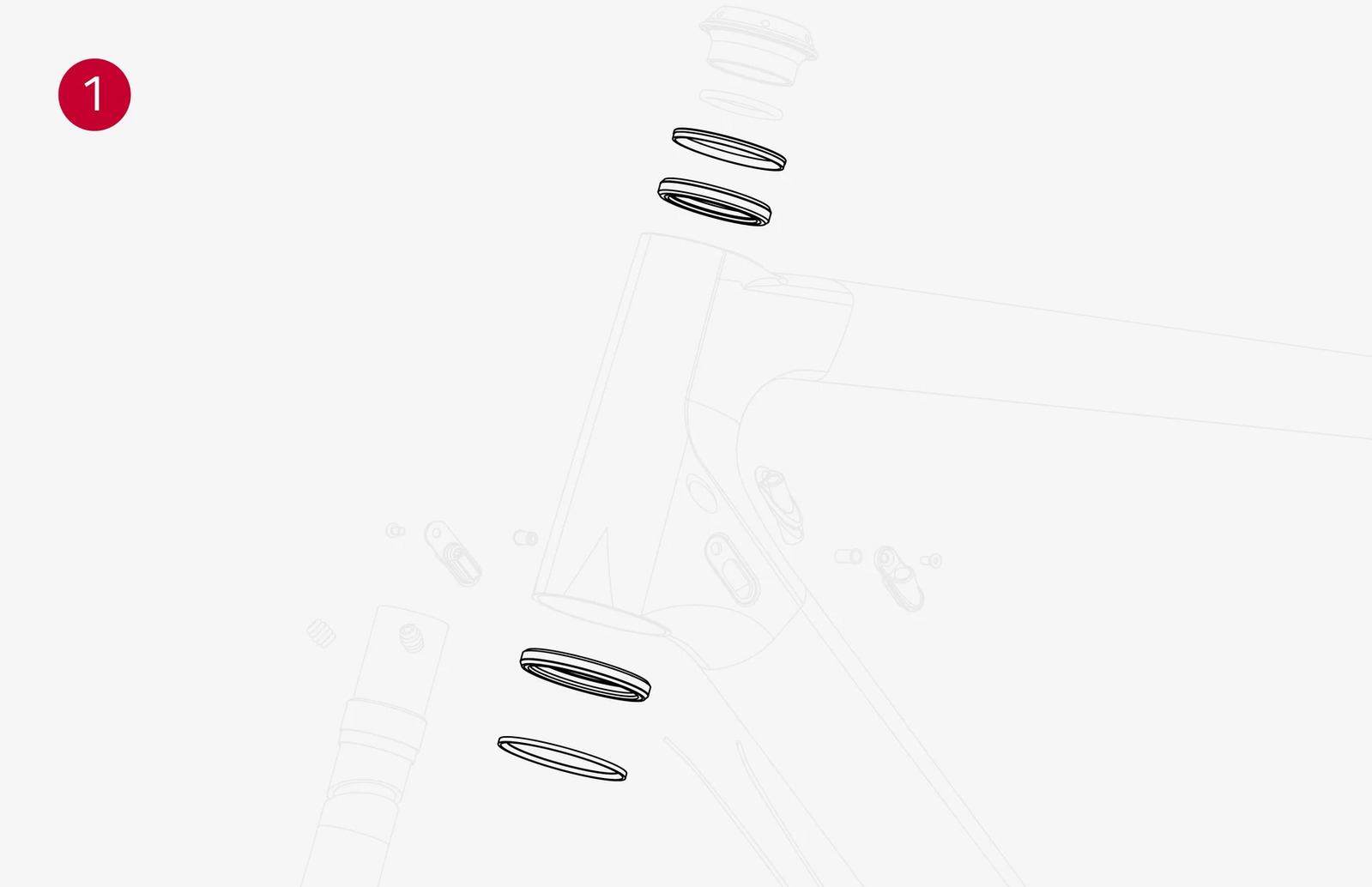

1 90002101 Headset Bearings 4 PCS
2 90002102 Quickset 2 PCS
3 90002103 Quickset Adjustment Tool 2 PCS

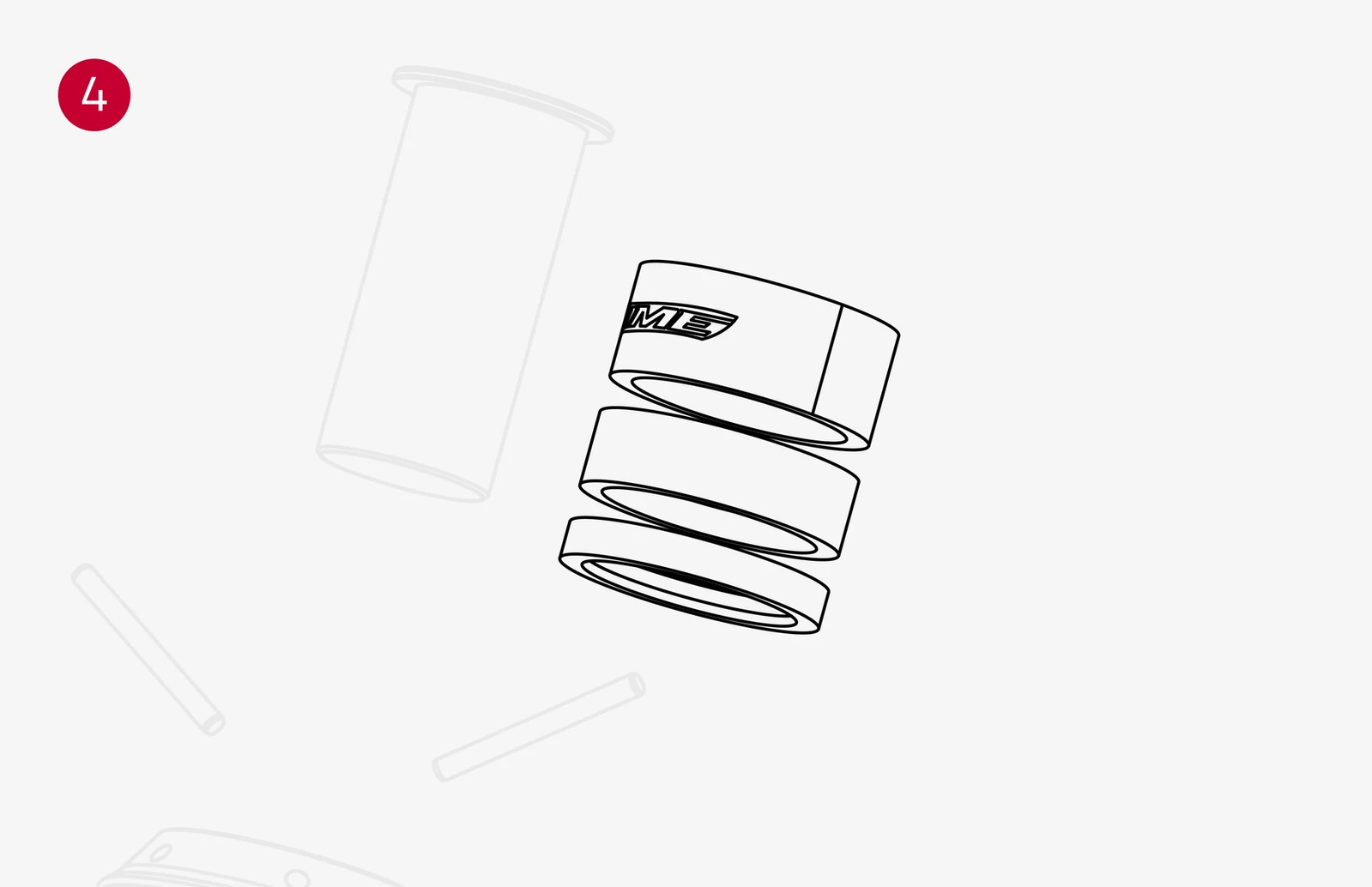

4 90002104 QS Gloss Spacers 5/10/15mm 3 PCS
5 90002105 QS Matte Spacers 5/10/15mm 3 PCS
6 90002106 Quickset Top Cap 1 PCS
7 90002107 Seat Clamp 2 PCS
8 90002108 Front Derailleur 5 PCS
9 90002109 Rear Derailleur Disc 2 PCS
10 90002110 Rear Derailleur Rim 2 PCS
11 90002111 H2O Bolt and Nut 4 PCS
12 90002112 Bottom Bracket Cable Guide 4 PCS
13 90002113 Brake Nuts 2 PCS
14 90002114 Electric Plug 7 PCS
15 90002115 Mechanic Plug 9 PCS
16 90002116 Brake Cable Guide 4 PCS
17 90002117 Fork Brake Plug 1 PCS
18 90002118 TIME Thru Axles F/R 2 PCS
SKU TIMEADH21SmallParts
Brand TIME Bicycles
Shipping Weight 0.1000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.250000000m3
Type TIME Bicycle Spares
