TIME Scylon Service Parts
$14.99
In Stock
Complete spares list for your TIME Scylon Frameset.

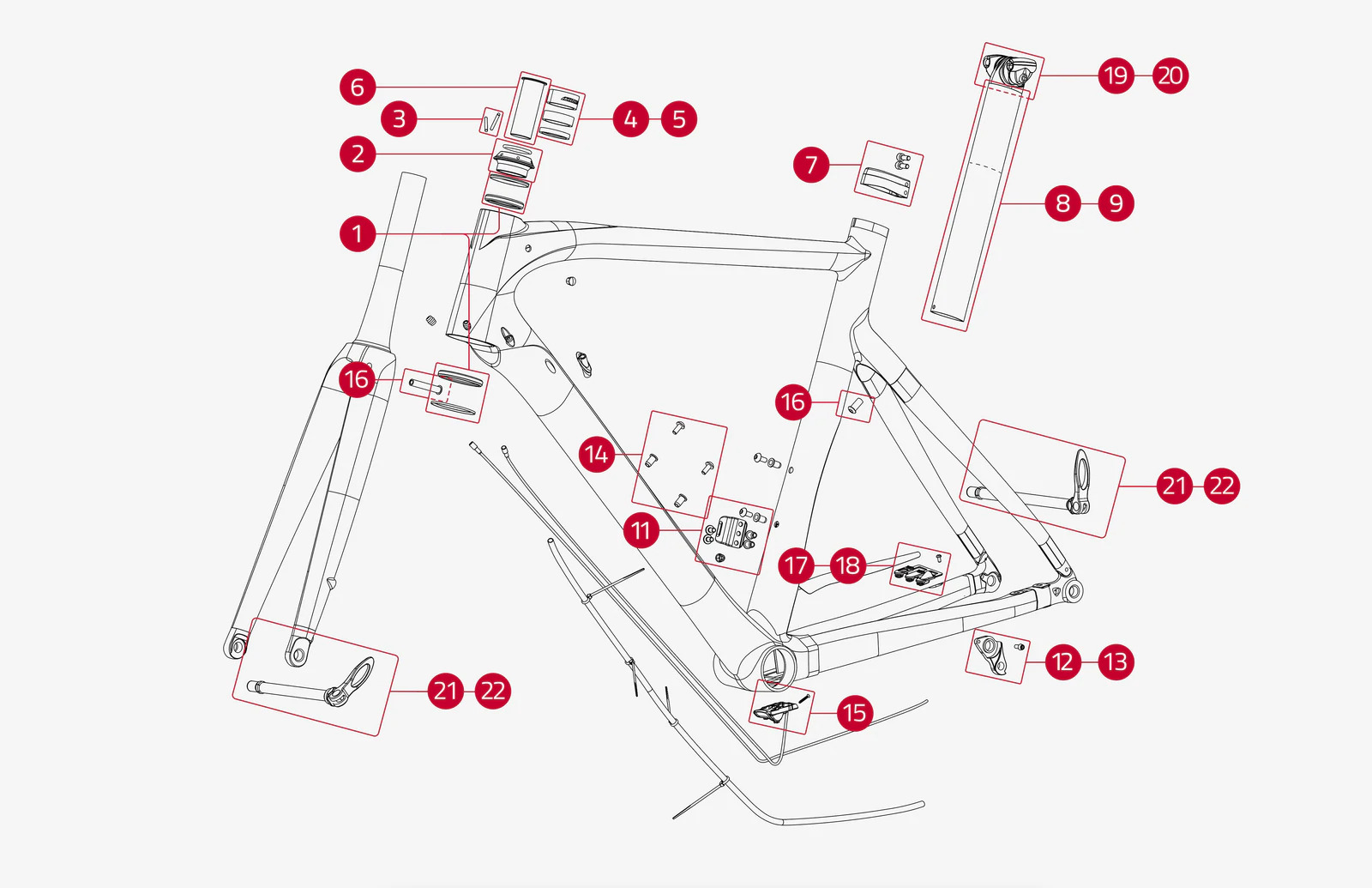

The master diagram shows the small part kits we supply. Please reference the chart below if you need additional information.
| Diagram | Part Number | Name | Items Per Kit |
| 1 | 90001801 | Headset Bearings | 4 PCS |
| 2 | 90001802 | Quickset | 2 PCS |
| 3 | 90001803 | Quickset Adjustment Tool | 2 PCS |

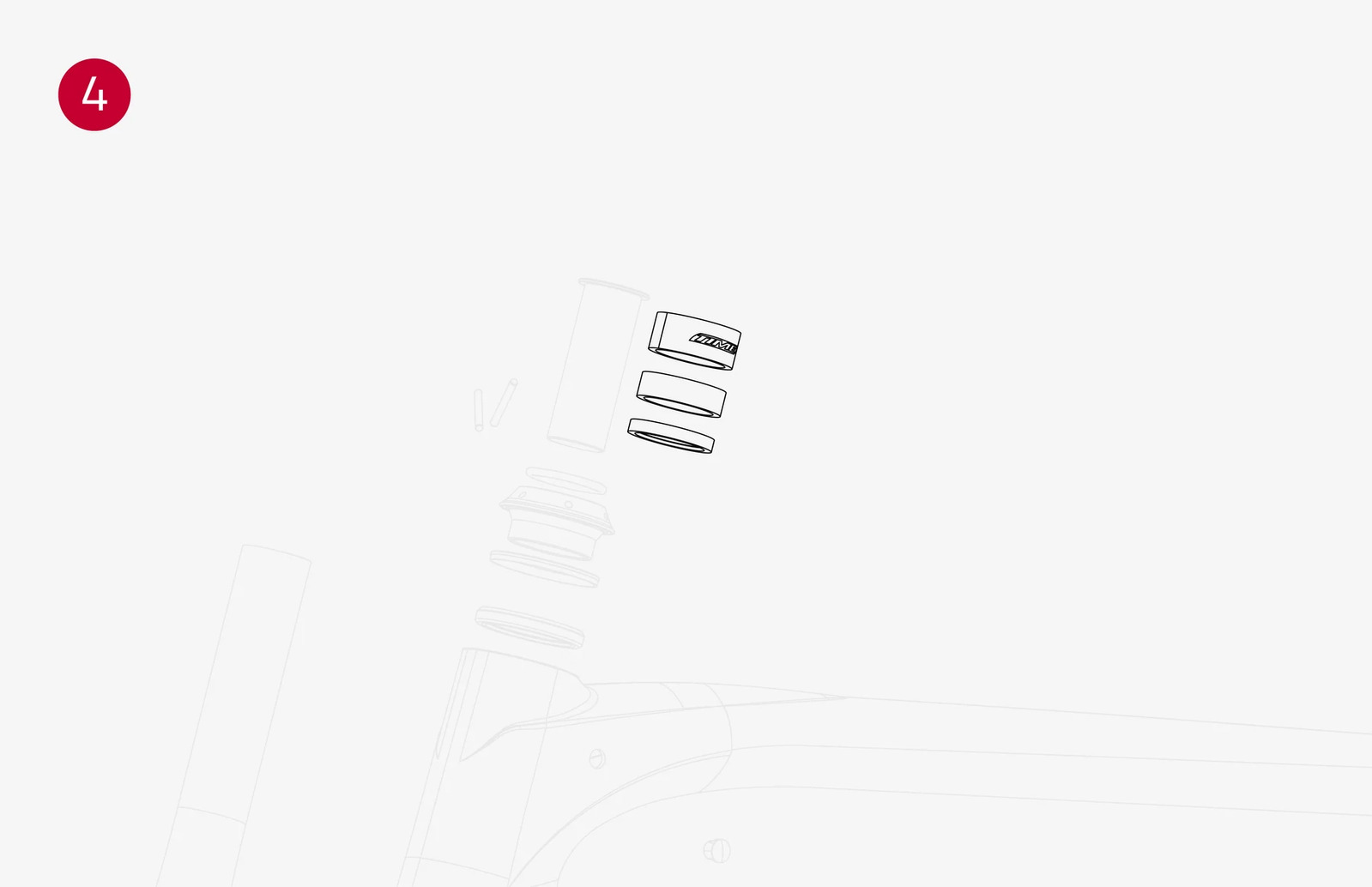

| 4 | 90001804 | Gloss Shims | 3 PCS |
| 5 | 90001805 | Matte Shims | 3 PCS |
| 6 | 90001806 | Quickset Top Cap | 1 PCS |
| 7 | 90001807 | Seat Clamp | 3 PCS |
| 8 | 90001808 | Seatpost | 1 PCS |
| 9 | 90001809 | Translink Seatpost | 1 PCS |
| 10 | 90001810 | ||
| 11 | 90001811 | Front Derailleur Hanger | 6 PCS |
| 12 | 90001812 | Rear Derailleur Hanger Disc | 2 PCS |
| 13 | 90001813 | Rear Derailleur Hanger Rim | 2 PCS |
| 14 | 90001814 | H2O Bolt and Nut | 4 PCS |
| 15 | 90001815 | Bottom Bracket Cable Guide | 2 PCS |
| 16 | 90001816 | Brake Nuts | 2 PCS |
| 17 | 90001817 | Electric Plug | 8 PCS |
| 18 | 90001818 | Mechanical Plug | 6 PCS |
| 19 | 90001819 | Saddle Cups for Carbon | 2 PCS |
| 20 | 90001820 | Saddle Cups | 2 PCS |
| 21 | 90001821 | Thru Axle Front/Rear Suntour Qloc | 2 PCS |
| 22 | 90001822 | TIME Thru Axles F/R | 2 PCS |
| SKU | TIMESCYLONSmallParts |
| Brand | TIME Bicycles |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.250000000m3 |
| Type | TIME Bicycle Spares |
